Warman Design & Build Challenge

Overview

The Warman Design and Build Challenge is a yearly international competition run by Engineers Australia for second-year mechatronics and mechanical engineering students. As team lead, I was personally responsible for the chassis, drivetrain, a custom 3D-printed worm-drive gearbox, the carbon fibre 900mm unfolding arm, and the electronics board.

Design strategy

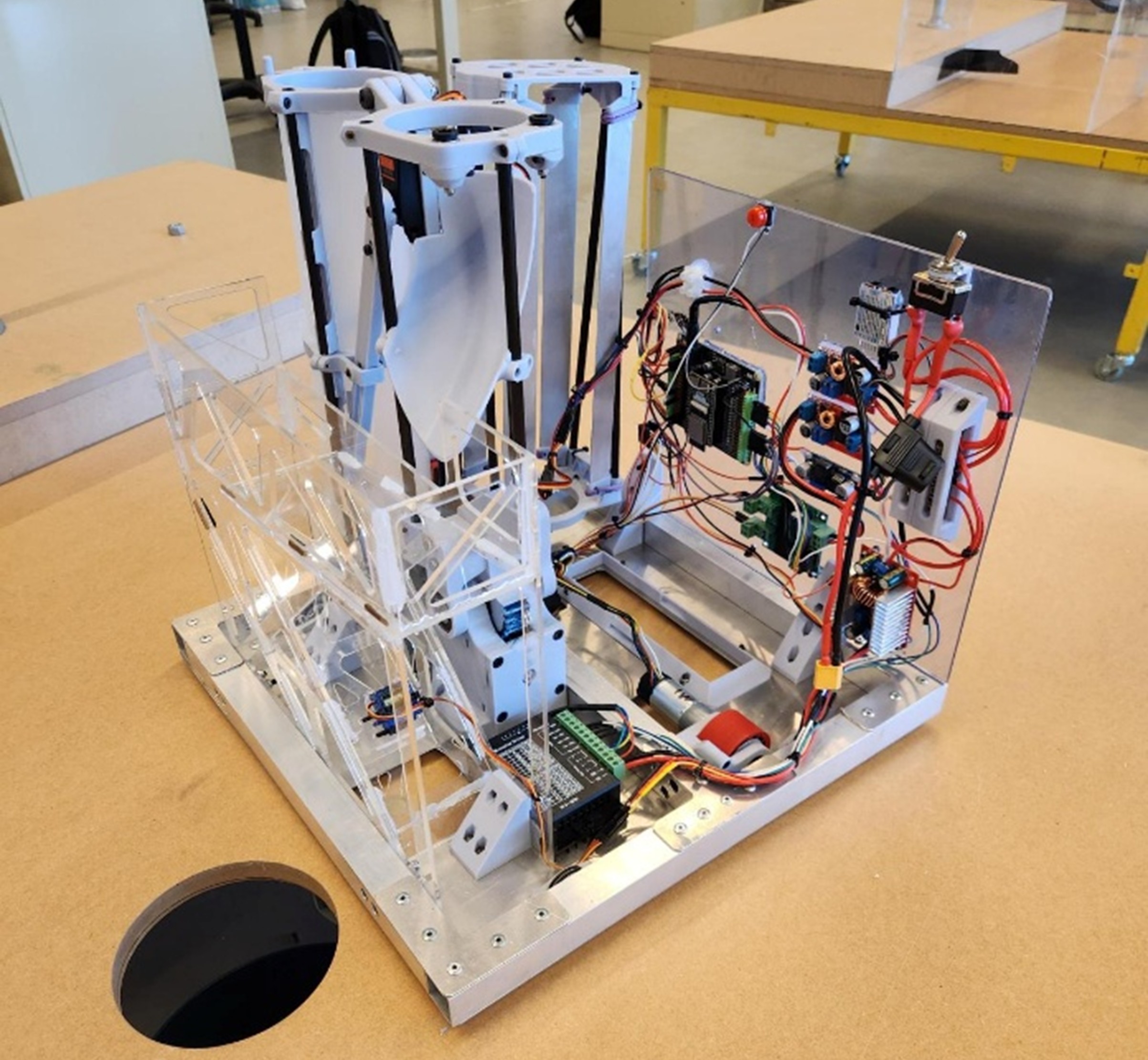

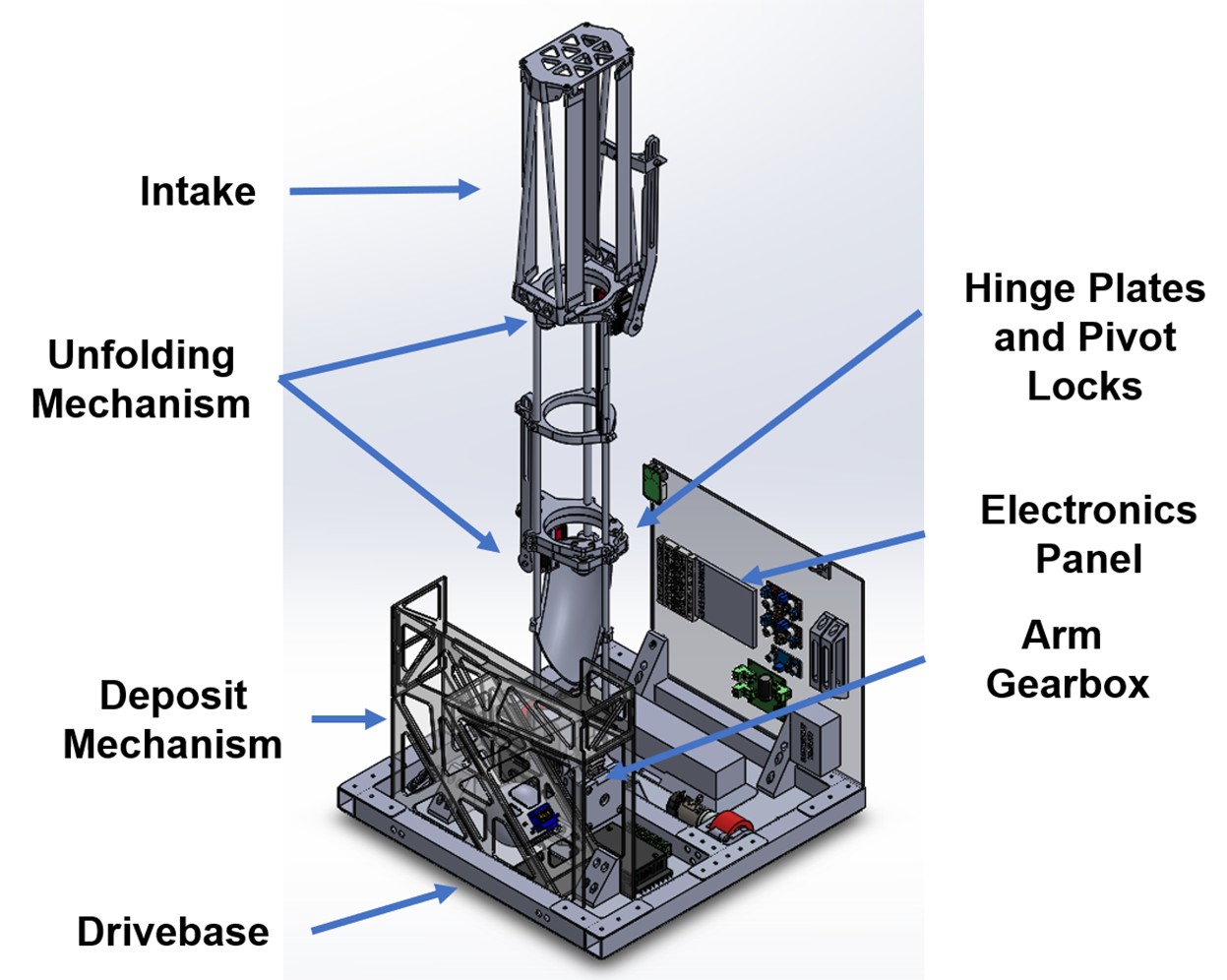

The core principle was minimising degrees of freedom. Fewer actuators means fewer failure modes and simpler control. The final robot used just six actuators: two encoded DC gearmotors for drive, three servos for collection and deposit, and one stepper for the arm gearbox. A waterjet-cut tube-and-gusset chassis kept the structure stiff with a low centre of gravity.

Drivetrain and control

Precise straight-line motion is critical when collecting balls from fixed positions autonomously. The drivetrain used cascaded PID with velocity and differential steering feedforward terms, tuned against 500+ empirically generated data points mapping PWM to measured velocity under load. The outer position loop driving an inner velocity loop gave consistent, repeatable moves with minimal overshoot at each pickup point.

Arm and gearbox

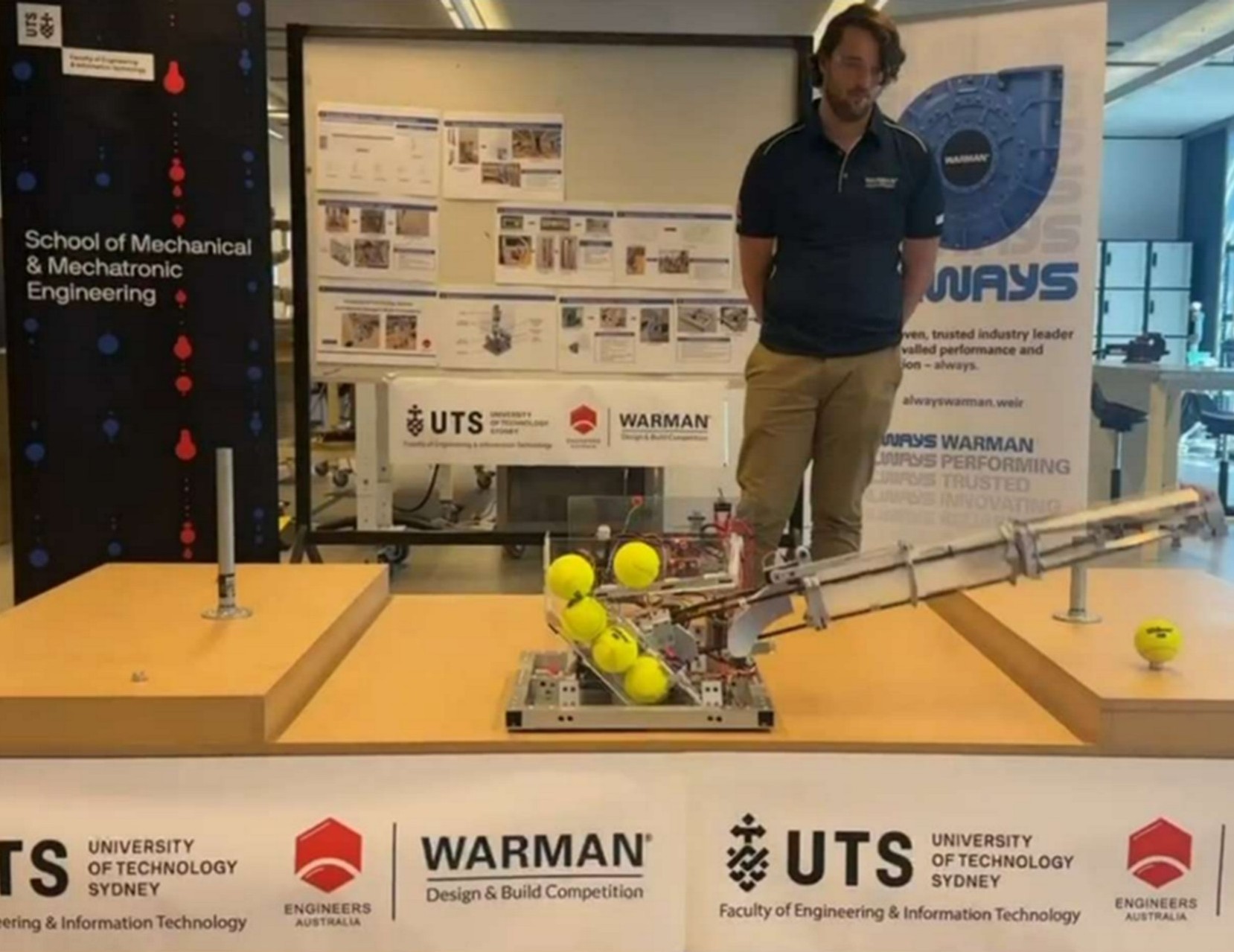

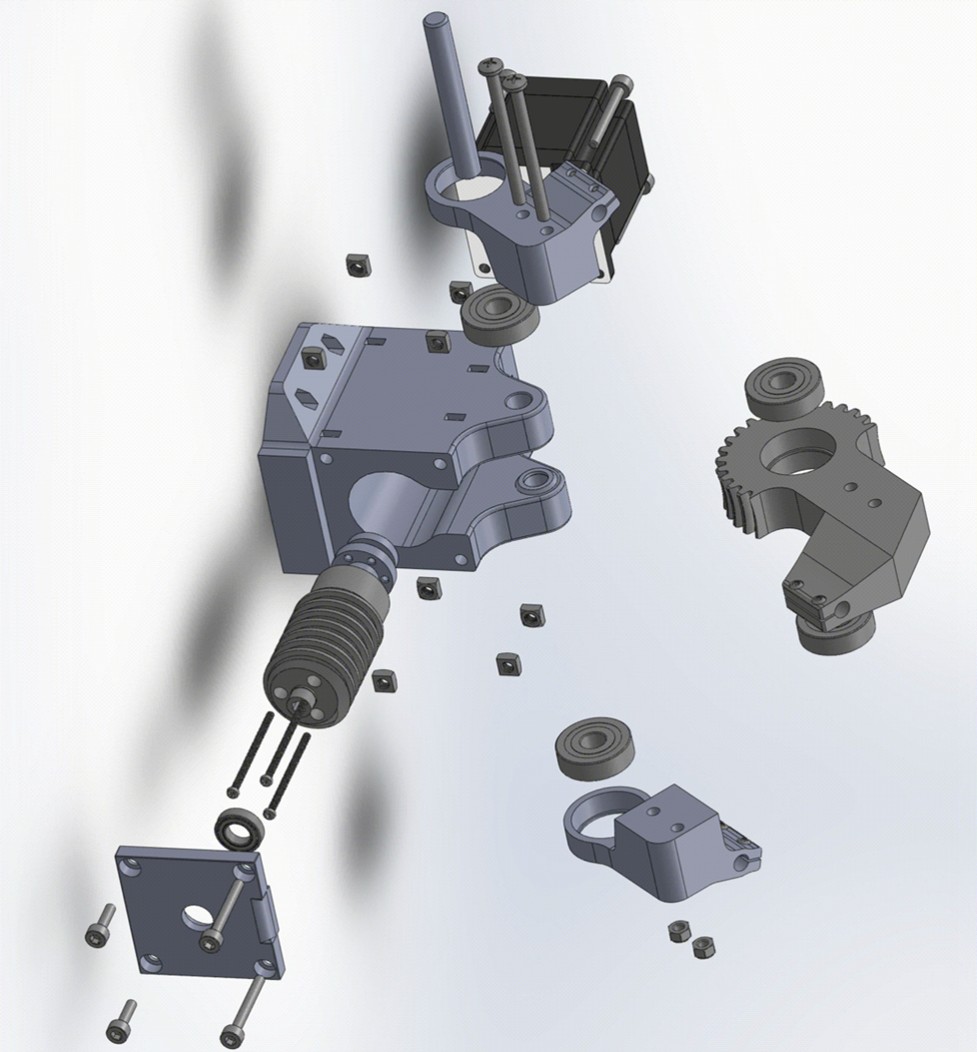

The arm deploys from stowed to 1 metre in under two seconds, then locks rigidly for ball collection. A custom 3D-printed worm-drive gearbox driven by a NEMA 23 stepper produces ~24 Nm output torque and propels the arm 160 degrees in just over a second. The worm gear self-locks in the extended position, eliminating the need for holding current. Carbon fibre segments snap and lock mechanically at full extension, so the entire deploy sequence runs open-loop from a single stepper command.

Key skills

• Empirical tuning of cascaded PID and feedforward control for a DC motor drivetrain
• CAD with a design-for-manufacturing focus for FDM 3D printing
• Debugging embedded mechatronic hardware under competition pressure
• Component selection and procurement across mechanical, electrical, and motion control
• Team leadership and project management across a three-person team
